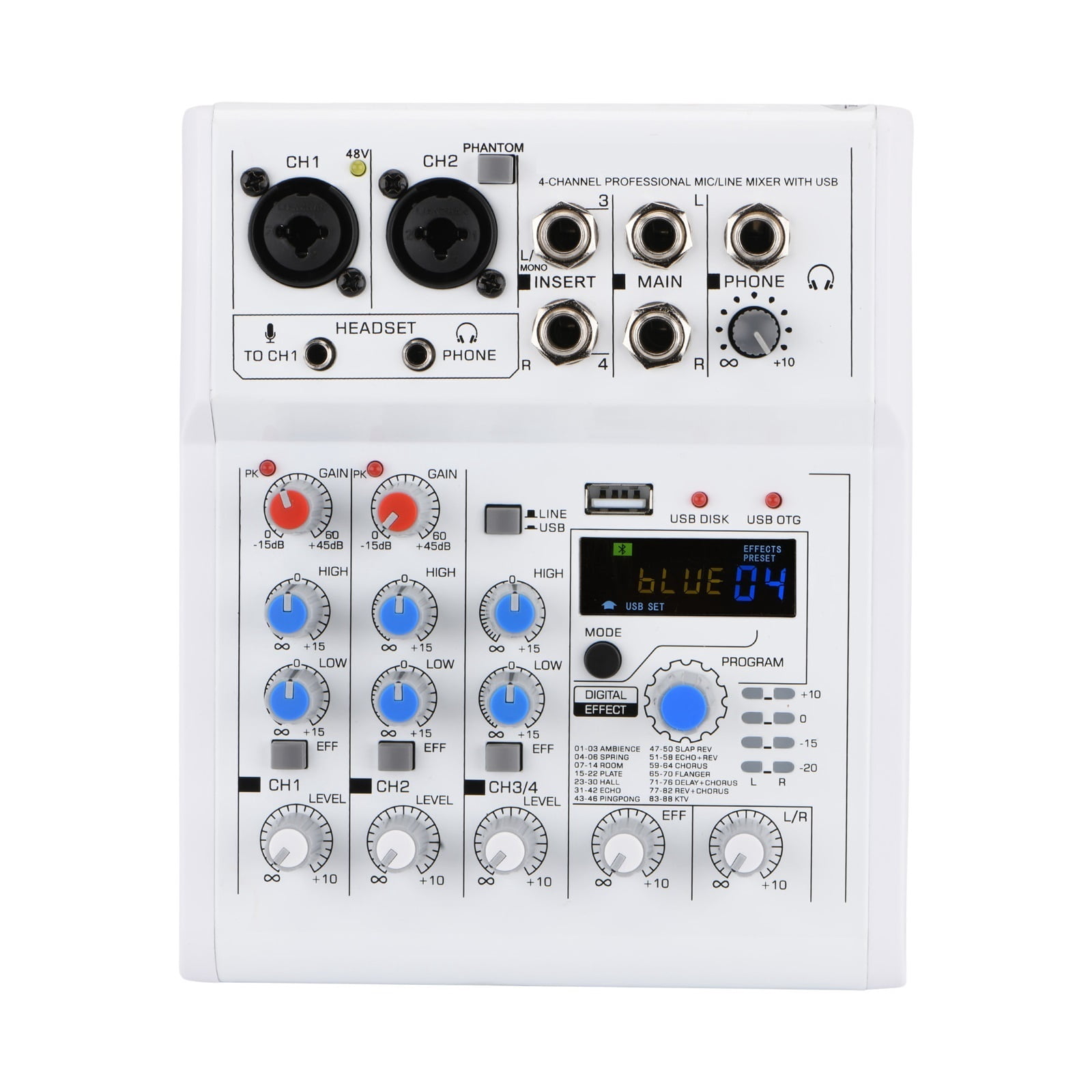

4 Channel DC 5V Mobile Computer USB Play and Record 88 DSP Effects Echo Reverb Personal Mixer

<p>4‐channel compact mixer with proven high headroom</p><p>1 mic/line input with studio‐level quality</p><p>Dedicated stereo RCA inputs/outputs for playback or recording</p><p>2‐band EQ with clean, precise t1 shaping</p><p>Phantom power for studio condenser mics</p>

• 1. 4 Channel mixing console
• 2. 88 Effects
• 3. function
• 4. USB record, play
• 5. Connect to Mobile, Computer

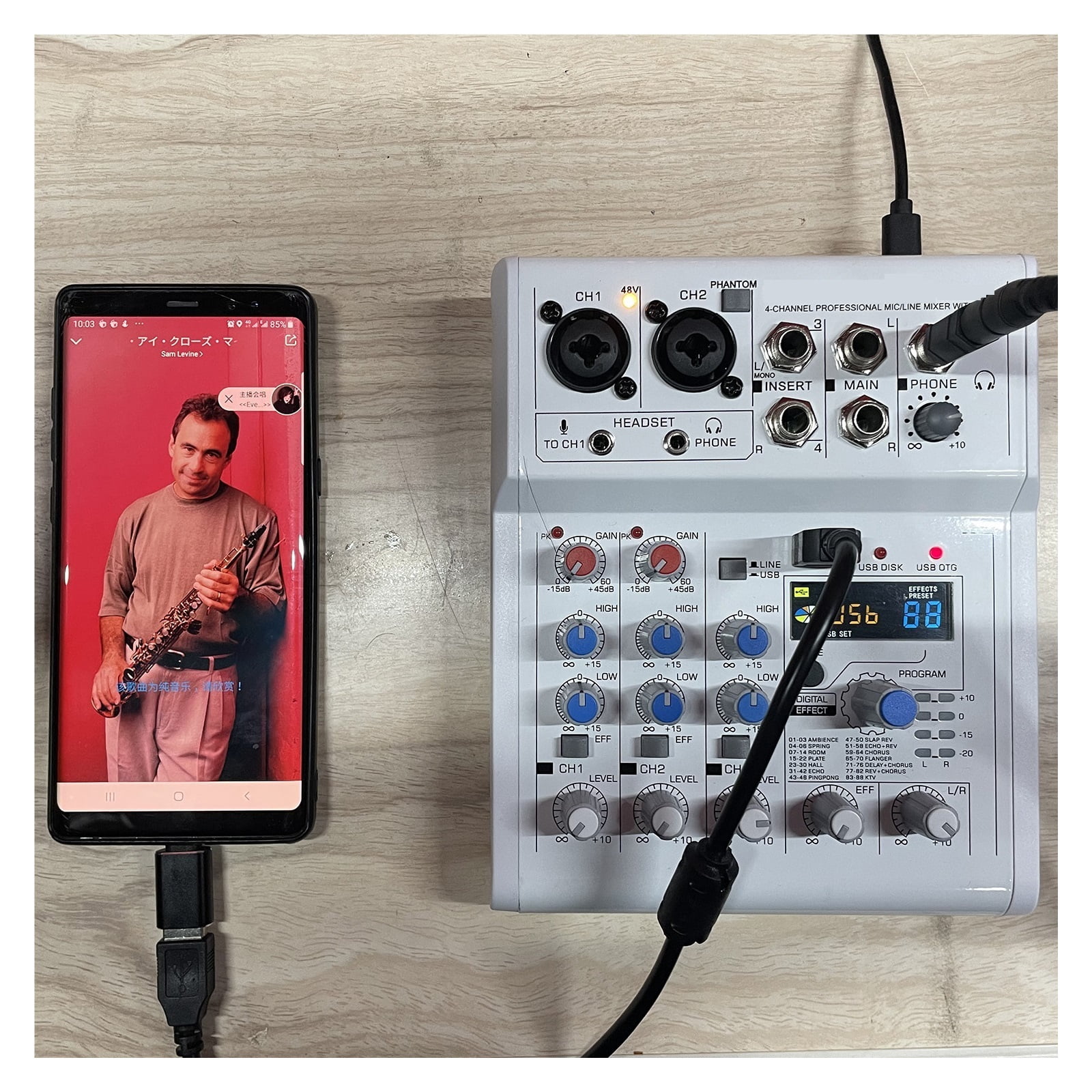

• Mobile Live Broadcast

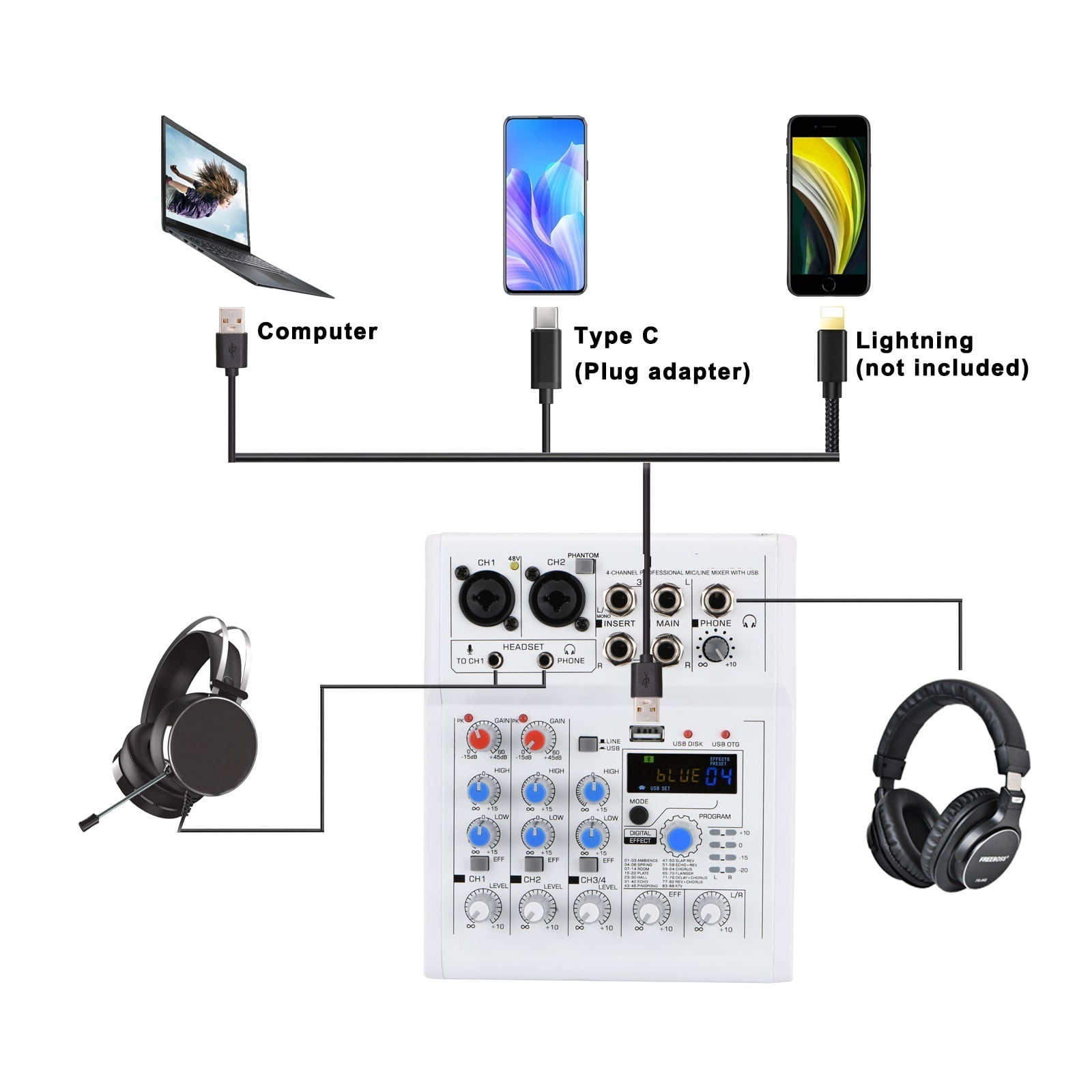

• 1. In the package, there is 1 piece USB cable , and a Type-C adapter.
• 2. You can connect your mobile to Mixer via the USB interface of the mixer
• 3. Mixer can receive the signal from Mobile, and Mobile can receive the signal from Mixer.
• 1. You can connect your computer to Mixer via the USB interface of the mixer
• 2. Mixer can receive the signal from computer, and computer can receive the signal from Mixer.
• PC play: you can play music from PC to mixer.--You need a pc music play software
• PC record: You can record the sound from mixer--you need a pc record software.
• Tips:
• (1)Front panel USB connect to PC,please turn the switch to USB power
• (2)Back panel USB connect to PC,please turn the switch to the PC
• Press "MODE" button, the white arrow will move to the left/middel/right position.
• Left: Function switch
• Middle: Player operation
• Right: Effect switch
• How to choose function
• Step 1.
• Press "MODE" to move the white arrow at the left position.
• Step 2.
• 1) Rotate "Program" knob to choose the function
• 2) Press "Program" knob to confirm.
• Note:
• . USB Play
• .
• . USB Record
• . Player play mode: Loop Cycle
• . Player play mode: Random
• . Player play mode: Single Cycle
• 88 Effects
• Effect setting
• Step1.
• Press "MODE" to move the white arrow at the right position.
• Step2.
• 1). Rotate "Program" knob to choose the effect.
• 2). Press "Program" knob to confirm.
• Effect input:
• Step 1.
• Rotate "EFF" knob to adjust the Effect level.
• Step 2.
• Press "EFF" button to input the effects to channels.
• Receive the signal from other transmitters.
• Choose Mode:
• Step 1.
• Press "MODE" to move the white arrow at the left position.
• Step 2.
• 1) Rotate "Program" knob to choose the function
• 2) Press "Program" knob to confirm.
• Connect Mobile to Mixer:
• Step 1.
• Turn on your mobile function, and search for the mixer.
• Step 2.
• Pair the Mobile and Mixer
• Step 3.
• Turn on your mobile music program to play music, mixer will receive the signal.
• How to play Pre or Next song, or Pause?
• Step 1:
• Press "MODE" to move the white arrow at the middle position.
• Step 2:
• 1) Pre/Next: Rotate "Program" to play Pre/Next song.
• 2) Pause: Press "Program" to pause
• volume adjust:
• Step 1:
• Press Line/USB button to "USB" status
• Step 2:
• Rotate Channel 3/4 volume Knob to adjust Channel output volume.
• Step 3:
• Rotate Main output knob to adjust the Main output volume.
• USB play:
• Step 1.
• 1. Insert USB stick, USB disk light will be on.
• 2. Mixer will play music automaticlly.
• Step 2:
• Press Line/USB button to "USB" status
• Step 3:
• Rotate Channel 3/4 volume Knob to adjust Channel output volume.
• Step 4:
• Rotate Main output knob to adjust the Main output volume.
• Note:
• 1. USB Stick: fat32
• 2. Music mode: MP3, WAV, WMA, FLAC.
• How to play Pre or Next song, or Pause?
• Step 1:
• Press "MODE" to move the white arrow at the middle position.
• Step 2:
• 1) Pre/Next: Rotate "Program" to play Pre/Next song.
• 2) Pause: Press "Program" to pause
• Enter Recording Mode:
• Step 1.
• Press "MODE" to move the white arrow at the left position.
• Step 2.
• 1) Rotate "Program" knob to choose the function
• 2) Press "Program" knob to confirm.
• Step 3.
• Press "MODE" to move the white arrow at the middel position.
• Record:
• Step 1.
• Press "Program" knob to begin to record.
• Step 2.
• Short Press: Record pause, press again, continue to record.
• Long Press: End the record.
• Play Record:
• Method 1: Long press "MODE"
• Method 2: Long press "Program"

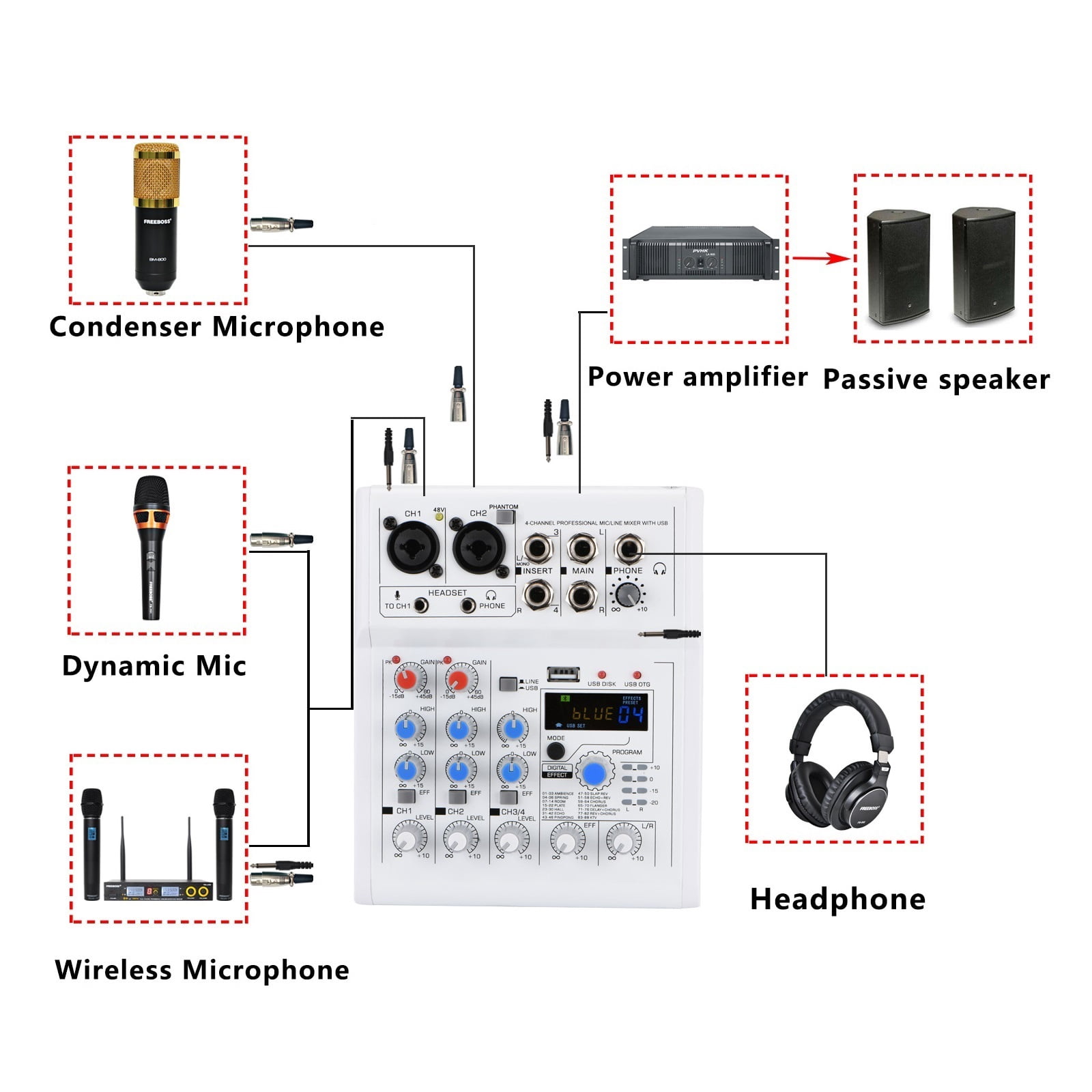

• 1. Press "Phantom" button, 48V led light will be on.
• 2. Channel 1 and Channle 2 will have +48V phantom--only for XLR jack.
• Dynamic Microphone
• For dynamic microphone, please do not use +48V phantom power.
• (please use XLR ,not a 6.3 ,because use the 6.3 ,the sound will be too small.)
• Condenser Microphone
• 1.Please sure if your condenser microphone supports +48V phantom power.
• (Note: Some condenser microphone does not support +48V phantom power).
• 2. Power on +48V phantom power to supply the power to conderser microphone.
• L/MONO Function
• For connecting to Line-level devices such as an electric keyboard or an device. Use the [L/MONO] jack on channel 2 for instruments. Etc. with mono output.
• Signal only input to [L/MONO] jack: Output is stereo.
• Signal only input to [R] jack: Output is only right.
• Signal input to [L/MONO] and [R] jacks: Output is stereo.
• Phone volume adjust:
• 1. Channel volume
• 2. Main out volume
• 3. Phone volume
• [Headset] microphone and phone (3.5mm)
• It is for headphone with microphone.
• Note:
• when you connect 3.5mm microphone to mixer, the signal will be input in Channel 1. XLR/6.3 jack will be cut off.
• PHONE (6.3)
• You can connect your phone to mixer via 1/4" jack.
• Packing List
